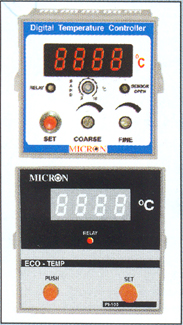

Single Set Point
(Temperature Controller)
|
|
| Inputs : |
Pt- 100/ J, K Thermocouple, 4-20mA 0-10V DC. |
| Display
: |
31/2 Digit (+/-1999),0.56" (14mm). Red Led. |
| Accuracy : |
JK Thermocouple- 1%, Pt-100-0.2%+/-1L .C |
| Action : |
ON-OFF / Time Proportional / Delay |
| Set Point Adj : |
Coarse + fine or single Multi turn Potentiometer. |
| Output : |
1C/O, 5A / 16A or 2C/O , 2A resistive. |
| Hys. / Reset : |
Fixed / variable on the
front panel , |
| Retransmission : |
4-20mA ./ 0-1V. |
| Control : |
Heat / Cool / Hi - Alarm / Lo- Alarm. |
| Supply : |
230 V / 110 V AC +/- 10% |
| Size : |
96 x 96 x 120 / 96 x 96 x 90 mm.
|
|
|
Model with 1" (25mm) display also available
Dtc 96 / ECO- TEMP |
|
| |
Single Set Point
(Temperature Controller)
|
| |
|
| Inputs : |
Pt- 100/ J, K Thermocouple, 4-20mA 0 -10V. |
| Display
: |
31/2 Digit (+/-1999),0.56" (14mm). Red Led. |
| Accuracy : |
J, K Thermocouple - 1%, Pt-100 - 0.25% +/- 1 L .C . |
| Action : |
ON-OFF / Time Proportional |
| Control : |
Heat / Cool / Hi - Alarm / Lo- Alarm / Hys. Reset : Fixed / varible on the Front Pannel. |
| Output : |
1C/O,5A / 16A or 2C/O, 2A resistive . |
| Set Point Adj : |
single / Multi - turn Potentiometer. |
| Supply : |
230 V AC/ 110 VAC +/- 10% |
| Size : |
72 x 72 x 113 mm.
|
|
|
|
|
| |
|
|
| Input
: |
Pt- 100/ J, K Thermocouple, 4-20mA 0 -10V DC. |
| Display : |
31/2 Digit (+/-1999),0.56" (14mm). Red Led. |
| Accuracy : |
J, K Thermocouple - 1%, Pt-100 - 0.25% +/- 1 L .C . |
| Action (set-1) : |
ON-OFF / Time Proportional |
| Action (set-2) : |
ON-OFF |
| Hys / Reset : |
Fixed /
Variable for each set point. |
| Control : |
Heat / Cool / Hi - Alarm / Lo- Alarm for individual set. |
| Output : |
1C/O,5A / 16A or 2C/O, 2A resistive . for each set point or common. |
| Set Point Adj : |
single / Multi - turn Potentiometer for each SP. |
|
Supply : |
230V/110V ,
+10%. |
|
Size : |
96 x96 x150 mm. |
|
|
|
